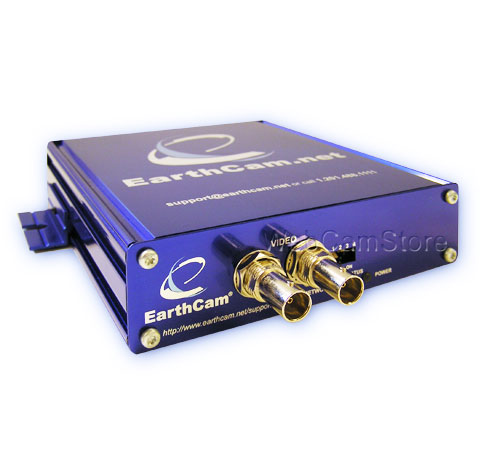

Designed for professional surveillance applications, the MPEG Video Webcaster 5001 can network one analog camera. It transforms analog video into high quality digital images for video transmission over intranet networks or the Internet. This enables users to view live images from any networked computer with a standard Web browser.
Easy to install and use, the MPEG Video Webcaster 5001 provides a comprehensive, single-box solution that enables you to have a professional surveillance application up and running in minutes. Your system can be as open or closed as needed. Access to live images can be restricted to only authorized users through several levels of password protection.
Features:
- High quality, Motion JPEG and MPEG video at full frame rate; that is, 25 (PAL) or 30 (NTSC) frames per second on each channel
- Multiple resolutions up to 768 x 576, and many different compression levels
- Built-in video motion detection
- 4 freely configurable alarm inputs and 4 outputs
- 9 MB pre/post alarm memory per channel
- Support for Pan/Tilt/Zoom devices
- Advanced event handling with multiple ways of notification via e-mail, TCP and HTTP, and video uploading via e-mail, FTP and HTTP
- HTTP-based application programming interface (API) for integration with applications
- Image customization with text, time/date and image overlay
- Support up to 20 simultaneous viewers
- HTTP encryption for secure networks
|
|
Video Webcaster 5001 |
| ID: |
46 |
| SYSTEM ID: |
633 |
| CAM COMPATIBILITY: |
EarthCam camera systems |
| REMOTE ACCESS: |
Yes |
| SECURITY: |
Multi user level password protection for restricted camera access
IP address filtering
HTTPS Encryption |
| EVENT HANDLING: |
Events triggered by internal motion detection, external inputs or schedule.
Alarm notification via e-mail, TCP, HTTP and upload of images via e-mail, FTP & HTTP |
| PTZ CONTROL: |
Yes |
| BROWSERS: |
Most versions of Microsoft Explorer, Mozilla, Netscape*, Opera* |
| CPU: |
ETRAX 100LX 32bit RISC CPU |
| COMPRESS CHIP: |
ARTPEC-2 video compr |
| FLASH MEM: |
8 MB |
| SDRAM: |
32/64 MB RAM |
| OS: |
Linux 2.4 kernel |
| NETWORK: |
10Base-T/100Base-TX Ethernet networks |
| VIDEO INPUTS: |
Analogue composite (BNC), Y/C video |
| FRAME RATE: |
25/30 frames per second per channel |
| COMPRESSION: |
Motion JPEG, MPEG |
| LARGE RESOLUTION: |
768 x 576 |
| TIME DATE STAMP: |
Yes |
| COLOR: |
Color & Black/White |
| HEIGHT: |
35 mm (1.4) |
| WIDTH: |
133 mm (5.2) |
| LENGTH: |
106 mm (4.2) |
| WEIGHT: |
540 g (1.2 pounds) |
| CONDITIONS: |
Temp: 5-50 C (41-122 F)
Humidity: 20-80% RH |
| CAMERA INPUT: |
1 |
| VIDEOSERVER: |
Yes |
|
